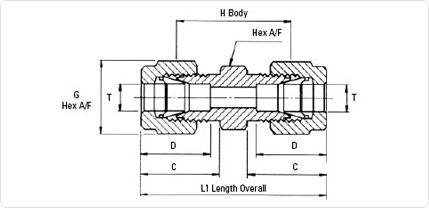

EQUAL UNIONS
METRIC RANGE |
Dimensions in mm |
|
| Part No. |
T o/d |
L1 Length |
C |
D |
F |
G
Nut |
H Body |
| 6mU |
6 |
44 |
19 |
17 |
14 |
14 |
26 |
| 8mU |
8 |
46 |
20 |
18 |
14 |
17 |
28 |
| 10mU |
10 |
49 |
20.5 |
18 |
17 |
19 |
30 |
| 12mU |
12 |
54 |
23 |
24 |
22 |
22 |
32 |
| 16mU |
16 |
56 |
24 |
26 |
24 |
27 |
32 |
| 18mU |
18 |
58 |
24 |
26 |
27 |
30 |
34 |
| 25mU |
25 |
72 |
31 |
.36 |
36 |
41 |
39 |
| |
IMPERIAL RANGE |
Dimensions in inches |
|
| Part No. |
T o/d |
L1 Length |
C |
D |
F |
G
Nut |
H
Body |
| 2U |
1/8 |
1.44 |
.63 |
.53 |
1/2 |
7/16 |
.88 |
| 3U |
3/16 |
1.47 |
.63 |
.54 |
1/2 |
1/2 |
.95 |
| 4U |
1/4 |
1.61 |
.70 |
.60 |
1/2 |
9/16 |
1.03 |
| 5U |
5/6 |
1.68 |
.73 |
.64 |
9/16 |
5/8 |
1.10 |
| 6U |
3/8 |
1.77 |
.76 |
.66 |
5/8 |
11/16 |
1.19 |
| 8U |
1/2 |
2.02 |
.86 |
.90 |
13/16 |
7/8 |
1.22 |
| 10U |
5/8 |
2.05 |
.86 |
.96 |
15/16 |
1 |
1.25 |
| 12U |
3/4 |
2.11 |
.86 |
.96 |
1-1/16 |
1-1/8 |
1.31 |
| 16U |
1 |
2.55 |
1.04 |
1.23 |
1-3/8 |
1-1/2 |
1.59 |
|
