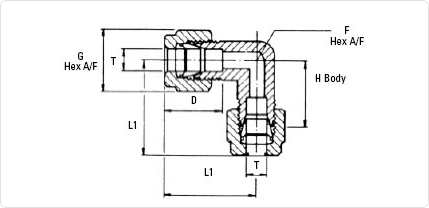

UNION ELBOWS
|
|||||||||||||
| Part No. | T | L1 Length |
D | F | G Nut | H Body | |||||||
| 6mELU | 6 | 28.5 | 17 | 12 | 14 | 19.5 | |||||||
| 8mELU | 8 | 31 | 18 | 14 | 17 | 22 | |||||||
| 10mELU | 10 | 33.5 | 18 | 19 | 19 | 25 | |||||||
| 12mELU | 12 | 36 | 24 | 19 | 22 | 25 | |||||||
| 16mELU | 16 | 39 | 26 | 24 | 27 | 27 | |||||||
| 18mELU | 18 | 41 | 26 | 27 | 30 | 29 | |||||||
| 25mELU | 25 | 50 | 36 | 32 | 41 | 33.5 | |||||||
|
|||||||||||||
| Part No. | T | L1 Length |
D | F | G Nut | H Body | |||||||
| 2ELU | 1/8 | .94 | .53 | .47 | 7/16 | .72 | |||||||
| 3ELU | 3/16 | 1.01 | .54 | .47 | 1/2 | .75 | |||||||
| 4ELU | 1/4 | 1.07 | .60 | .47 | 9/16 | .78 | |||||||
| 5ELU | 5/16 | 1.17 | .64 | .55 | 5/8 | .88 | |||||||
| 6ELU | 3/8 | 1.20 | .66 | .55 | 11/16 | .91 | |||||||
| 8ELU | 1/2 | 1.38 | .90 | .74 | 7/8 | .98 | |||||||
| 10ELU | 5/8 | 1.46 | .96 | .94 | 1 | 1.06 | |||||||
| 12ELU | 3/4 | 1.51 | .96 | 1.06 | 1-1/8 | 1.11 | |||||||
| 16ELU | 1 | 1.79 | 1.23 | 1.26 | 1-1/2 | 1.31 | |||||||
