UNEQUAL UNIONS
|
|||||||||||||

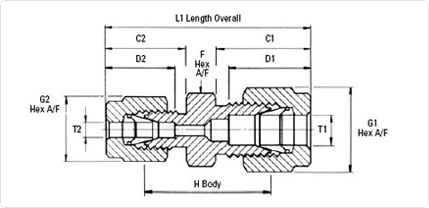

| Part No. | T o/d | T2 o/d | L1 Length | C1 | C2 | F | G1 Nut |
G2 Nut |
H Body | ||||
| 3RU2 | 3/16 | 1/8 | 1.48 | .66 | .63 | 1/2 | 1/2 | 7/16 | .92 | ||||
| 4RU2 | 1/4 | 1/8 | 1.56 | .72 | .63 | 1/2 | 9/16 | 7/16 | .97 | ||||
| 4RU3 | 1/4 | 3/16 | 1.55 | .70 | .63 | 1/2 | 9/16 | 1/2 | 1.00 | ||||
| 5RU4 | 5/16 | 1/4 | 1.66 | .73 | .70 | 9/16 | 5/8 | 9/16 | 1.08 | ||||
| 6RU4 | 3/8 | 1/4 | 1.70 | .76 | .70 | 5/8 | 11/16 | 9/16 | 1.12 | ||||
| 6RU5 | 3/8 | 5/16 | 1.74 | .76 | .73 | 5/8 | 11/16 | 5/8 | 1.16 | ||||
| 8RU4 | 1/2 | 1/4 | 1.85 | .86 | .70 | 13/16 | 7/8 | 9/16 | 1.16 | ||||
| 8RU6 | 1/2 | 3/8 | 1.91 | .86 | .76 | 13/16 | 7/8 | 11/16 | 1.22 | ||||
| 10RU6 | 5/8 | 3/8 | 1.94 | .86 | .76 | 15/16 | 1 | 11/16 | 1.25 | ||||
| 10RU8 | 5/8 | 1/2 | 2.05 | .86 | .86 | 15/16 | 1 | 7/8 | 1.25 | ||||
| 12RU8 | 3/4 | 1/2 | 2.11 | .86 | .86 | 1-1/16 | 1-1/8 | 7/8 | 1.31 | ||||
| 12RU10 | 3/4 | 5/8 | 2.11 | .86 | .86 | 1-1/16 | 1-1/8 | 1 | 1.31 | ||||
| 16RU12 | 1 | 3/4 | 2.47 | 1.04 | .86 | 1-3/8 | 1-1/2 | 1-1/8 | 1.59 | ||||
