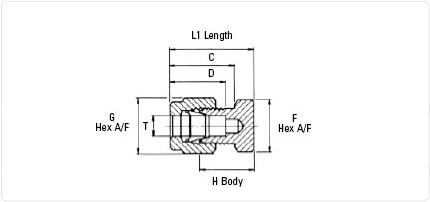

CAPS
METRIC RANGE |
Dimensions in mm |
|
| Part No. |
T o/d |
L1 Length |
C |
D |
F |
G Nut |
H Body |
| 6mCAP |
6 |
25 |
19 |
17 |
14 |
14 |
16 |
| 8mCAP |
8 |
26 |
20 |
18 |
14 |
17 |
17 |
| 10mCAP |
10 |
26.5 |
20.5 |
18 |
17 |
19 |
18 |
| 12mCAP |
12 |
33 |
23 |
24 |
22 |
22 |
22 |
| 16mCAP |
16 |
35 |
24 |
26 |
24 |
27 |
23 |
| 18mCAP |
18 |
37 |
24 |
26 |
27 |
30 |
25 |
| 25mCAP |
25 |
45.5 |
31 |
36 |
36 |
41 |
29 |
IMPERIAL RANGE |
Dimensions in inches |
|
| Part No. |
T o/d |
L1 Length |
C |
D Body |
F |
G Nut |
H Body |
| 2CAP |
1/8 |
.81 |
.63 |
.53 |
1/2 |
7/16 |
.53 |
| 4CAP |
1/4 |
.91 |
.70 |
.60 |
1/2 |
9/16 |
.62 |
| 5CAP |
5/6 |
.96 |
.73 |
.64 |
9/16 |
5/8 |
.67 |
| 6CAP |
3/8 |
1.01 |
.76 |
.66 |
5/8 |
11/16 |
.72 |
| 8CAP |
1/2 |
1.15 |
.86 |
.90 |
13/16 |
7/8 |
.75 |
| 10CAP |
5/8 |
1.18 |
.86 |
.96 |
15/16 |
1 |
.78 |
| 12CAP |
3/4 |
1.24 |
.86 |
.96 |
1-1/16 |
1-1/8 |
.84 |
| 16CAP |
1 |
1.51 |
1.04 |
1.23 |
1-3/8 |
1-1/2 |
1.03 |
