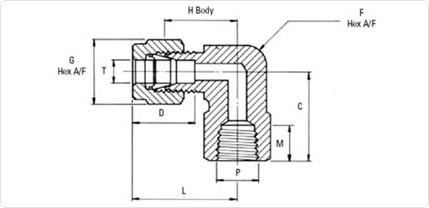

FEMALE ELBOWS
|
|||||||||||||
| Part No. | T o/d | P | L | M | C | D | F | G Nut |
H Body | ||||
| 6mFE2 | 6 | 1/8 | 28 | 10 | 19 | 17 | 12 | 14 | 19 | ||||
| 6mFE4 | 6 | 1/4 | 32 | 14 | 25.5 | 17 | 19 | 14 | 23 | ||||
| 6mFE6 | 6 | 3/8 | 34 | 14 | 25 | 17 | 24 | 14 | 25 | ||||
| 6mFE8 | 6 | 1/2 | 36 | 22 | 30 | 17 | 27 | 14 | 27 | ||||
| 8mFE2 | 8 | 1/8 | 30 | 10 | 23 | 18 | 14 | 17 | 21 | ||||
| 8mFE4 | 8 | 1/4 | 33 | 14 | 25.5 | 18 | 19 | 17 | 24 | ||||
| 8mFE6 | 8 | 3/8 | 35 | 14 | 25 | 18 | 24 | 17 | 26 | ||||
| 8mFE8 | 8 | 1/2 | 37 | 22 | 30 | 18 | 27 | 17 | 28 | ||||
| 10mFE2 | 10 | 1/8 | 33.5 | 10 | 23 | 18 | 19 | 19 | 23 | ||||
| 10mFE4 | 10 | 1/4 | 33.5 | 14 | 25.5 | 18 | 19 | 19 | 25 | ||||
| 10mFE6 | 10 | 3/8 | 33.5 | 14 | 25 | 18 | 24 | 19 | 27 | ||||
| 10mFE8 | 10 | 1/2 | 37.5 | 22 | 30 | 18 | 27 | 19 | 29 | ||||
| 12mFE4 | 12 | 1/4 | 36 | 14 | 25.5 | 24 | 19 | 22 | 25 | ||||
| 12mFE6 | 12 | 3/8 | 38 | 14 | 25 | 24 | 24 | 22 | 27 | ||||
| 12mFE8 | 12 | 1/2 | 40 | 22 | 30 | 24 | 27 | 22 | 29 | ||||
| 16mFE6 | 16 | 3/8 | 39 | 14 | 25 | 24 | 24 | 27 | 27 | ||||
| 16mFE8 | 16 | 1/2 | 41 | 22 | 30 | 26 | 27 | 27 | 29 | ||||
| 18mFE8 | 18 | 1/2 | 41 | 22 | 30 | 26 | 27 | 30 | 29 | ||||
| 18mFE12 | 18 | 3/4 | 41 | 22 | 30 | 26 | 32 | 30 | 32 | ||||
|
|||||||||||||
| Part No. | T o/d | P | L | M | C | D | F | G Nut |
H Body | ||||
| 2FE2 | 1/8 | 1/8 | .95 | .39 | .75 | .50 | .50 | 7/16 | .69 | ||||
| 2FE4 | 1/8 | 1/4 | 1.07 | .59 | .88 | .50 | .69 | 7/16 | .81 | ||||
| 3FE2 | 3/16 | 1/8 | .98 | .39 | .75 | .54 | .50 | 1/2 | .72 | ||||
| 4FE2 | 1/4 | 1/8 | 1.04 | .39 | .75 | .60 | .50 | 9/16 | .75 | ||||
| 4FE4 | 1/4 | 1/4 | 1.17 | .59 | .88 | .60 | .69 | 9/16 | .88 | ||||
| 5FE2 | 5/16 | 1/8 | 1.17 | .39 | .75 | .64 | .63 | 5/8 | .88 | ||||
| 5FE4 | 5/16 | 1/4 | 1.20 | .59 | .88 | .64 | .69 | 5/8 | .91 | ||||
| 6FE2 | 3/8 | 1/8 | 1.20 | .39 | .75 | .66 | .63 | 11/16 | .91 | ||||
| 6FE4 | 3/8 | 1/4 | 1.23 | .59 | .88 | .66 | .69 | 11/16 | .94 | ||||
| 6FE6 | 3/8 | 3/8 | 1.32 | .59 | .88 | .66 | .81 | 11/16 | 1.03 | ||||
| 6FE8 | 3/8 | 1/2 | 1.41 | .78 | 1.12 | .66 | 1.00 | 11/16 | 1.12 | ||||
| 8FE4 | 1/2 | 1/4 | 1.38 | .59 | .88 | .90 | .81 | 7/8 | .98 | ||||
| 8FE6 | 1/2 | 3/8 | 1.43 | .59 | .88 | .90 | .81 | 7/8 | 1.03 | ||||
| 8FE8 | 1/2 | 1/2 | 1.52 | .78 | 1.12 | .90 | 1.00 | 7/8 | 1.12 | ||||
| 10FE6 | 5/8 | 3/8 | 1.46 | .59 | .88 | .96 | .94 | 1 | 1.06 | ||||
| 10FE8 | 5/8 | 1/2 | 1.52 | .78 | 1.12 | .96 | 1.00 | 1 | 1.12 | ||||
| 12FE8 | 3/4 | 1/2 | 1.51 | .78 | 1.12 | .96 | 1.06 | 1-1/8 | 1.11 | ||||
| 12FE12 | 3/4 | 3/4 | 1.65 | .81 | 1.25 | .96 | 1.25 | 1-1/8 | 1.25 | ||||
