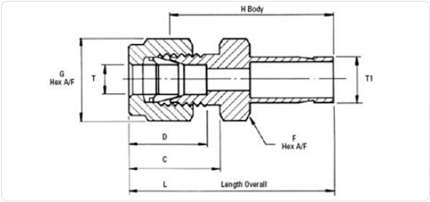

REDUCERS
METRIC RANGE |
Dimensions in mm |
|
| Part No. |
T o/d |
T1 o/d |
L |
C |
D |
F |
G |
H |
| 6m RED 4m |
6 |
4 |
39 |
19 |
17 |
14 |
14 |
30 |
| 6m RED 4m |
6 |
8 |
42 |
19 |
17 |
14 |
14 |
33 |
| 6m RED 10m |
6 |
10 |
43 |
19 |
17 |
14 |
14 |
35 |
| 10m RED 6m |
10 |
6 |
43.5 |
20.5 |
18 |
17 |
19 |
35 |
| 10m RED 12m |
10 |
12 |
50.5 |
20.5 |
18 |
17 |
19 |
42 |
| 12m RED 10m |
12 |
10 |
50 |
23 |
24 |
22 |
22 |
39 |
IMPERIAL RANGE |
Dimensions in inches |
|
| Part No. |
T o/d |
T1 o/d |
L |
C |
D |
F |
G |
H |
| 2RED4 |
1/8 |
1/4 |
1.42 |
.60 |
.50 |
7/16 |
7/16 |
1.16 |
| 4RED2 |
1/4 |
1/8 |
1.45 |
.70 |
.60 |
1/2 |
9/16 |
1.16 |
| 4RED6 |
1/2 |
3/8 |
1.60 |
.70 |
.60 |
1/2 |
9/16 |
1.31 |
| 4RED8 |
1/4 |
1/2 |
1.82 |
.70 |
.60 |
9/16 |
9/16 |
1.53 |
| 6RED4 |
3/8 |
1/4 |
1.63 |
.76 |
.66 |
5/8 |
11/16 |
1.34 |
| 6RED8 |
3/8 |
1/2 |
1.91 |
.76 |
.66 |
5/8 |
11/16 |
1.62 |
| 8RED6 |
1/2 |
3/8 |
1.48 |
.86 |
.90 |
13/16 |
7/8 |
1.44 |
