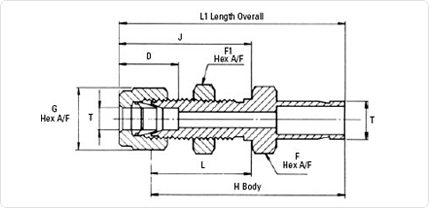

BULKHEAD ADAPTOR
METRIC RANGE |
Dimensions in mm |
|
| Part No. |
T o/d |
L1 Length |
D |
F |
F1 |
G |
H |
J |
L |
Panel Hole |
Max
Panel |
| 6mBHA |
6 |
58 |
17 |
17 |
17 |
14 |
49 |
35 |
26 |
11.6 |
12 |
| 8mBHA |
8 |
61 |
18 |
17 |
17 |
17 |
52 |
37.5 |
28.5 |
13.2 |
14 |
| 10mBHA |
10 |
63.5 |
18 |
19 |
19 |
19 |
55 |
38 |
29.5 |
16.4 |
10 |
| 12mBHA |
12 |
73 |
24 |
24 |
24 |
22 |
62 |
43 |
32 |
19.5 |
14 |
| 16mBHA |
16 |
78 |
26 |
27 |
27 |
27 |
66 |
44.5 |
32.5 |
22.7 |
14 |
| 18mBHA |
18 |
83 |
26 |
30 |
30 |
30 |
71 |
49.5 |
49.5 |
25.9 |
18 |
| 25mBHA |
25 |
101.5 |
36 |
41 |
41 |
41 |
85 |
62 |
45.5 |
33.8 |
27 |
IMPERIAL RANGE |
Dimensions in inches |
|
| Part No. |
T o/d |
L1 Length |
D |
F |
F1 |
G |
H |
J |
L |
Panel Hole |
Max
Panel |
| 2BHA |
1/8 |
2.04 |
.53 |
1/2 |
1/2 |
7/16 |
1.76 |
1.25 |
.97 |
21/64 |
.40 |
| 3BHA |
3/16 |
2.05 |
.54 |
9/16 |
9/16 |
1/2 |
1.79 |
1.26 |
1.00 |
25/64 |
.40 |
| 4BHA |
1/4 |
2.19 |
.60 |
5/8 |
5/8 |
9/16 |
1.90 |
1.32 |
1.03 |
29/64 |
.40 |
| 5BHA |
5/16 |
2.32 |
.64 |
11/16 |
11/16 |
5/8 |
2.03 |
1.41 |
1.12 |
33/64 |
.50 |
| 6BHA |
3/8 |
2.44 |
.66 |
3/4 |
3/4 |
11/16 |
2.15 |
1.45 |
1.16 |
37/64 |
.40 |
| 8BHA |
1/2 |
2.87 |
.90 |
15/16 |
15/16 |
7/8 |
2.47 |
1.65 |
1.25 |
49/64 |
.50 |
| 10BHA |
5/8 |
2.99 |
.96 |
1 |
1 |
1 |
2.58 |
1.69 |
1.28 |
57/64 |
.50 |
| 12BHA |
3/4 |
3.17 |
.96 |
1-3/16 |
1-3/16 |
1-1/8 |
2.77 |
1.87 |
1.47 |
1-1/64 |
.67 |
| 16BHA |
1 |
3.83 |
1.23 |
1-5/8 |
1-5/8 |
1-1/2 |
3.35 |
2.26 |
1.78 |
1-21/64 |
.88 |
|
