MALE RUN TEES

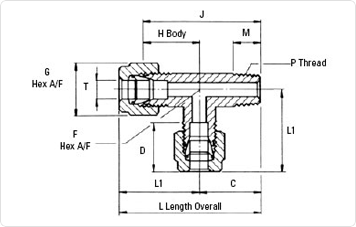

pic1

METRIC RANGE

Dimensions in mm
Part No. T o/d P L1 Length M C F G
Nut		 H
Body		 J L
6mTMT2 6 1/8 28.5 10 19 12 14 19.5 38.5 47.5
6mTMT4 6 1/4 28.5 15 26 12 14 19.5 45.5 54.5
6mTMT6 6 3/8 30.5 16 28.5 14 14 21.5 50 59
6mTMT8 6 1/2 32 20 32.5 19 14 23 55.5 64.5
8mTMT2 8 1/8 31 10 20 14 17 22 42 51
8mTMT4 8 1/4 31 15 27 14 17 22 49 58
8mTMT6 8 3/8 31.5 16 28.5 14 17 22.5 51 60
8mTMT8 8 1/2 33 20 32.5 19 17 24 56.5 65.5
10mTMT2 10 1/8 35 10 24 14 19 26.5 50.5 59
10mTMT4 10 1/4 33.5 16 28 19 19 25 53 61.5
10mTMT6 10 3/8 33.5 16 29 19 19 25 54 62.5
10mTMT8 10 1/2 33.5 20 32.5 19 19 25 57.5 66
12mTMT4 12 1/4 36 15 28 19 22 25 53 64
12mTMT6 12 1/8 36 16 29 19 22 25 54 65
12mTMT8 12 1/2 36 20 32.5 19 22 25 57.5 68.5
16mTMT8 16 1/2 39 20 34.5 24 27 27 61.5 73.5

IMPERIAL RANGE

Dimensions in inches
Part No. T o/d P L1 Length M C F G Nut H Body J L
2TMT2 1/8 1/8 1.00 .38 .76 .47 7/16 .72 1.48 1.76
2TMT4 1/8 1/4 1.00 .56 .94 .47 7/16 .72 1.66 1.94
3TMT2 3/16 1/8 1.00 .38 .76 .47 1/2 .75 1.51 1.76
4TMT2 1/4 1/8 1.07 .38 .76 .47 9/16 .78 1.54 1.83
4TMT4 1/4 1/4 1.07 .56 .94 .47 9/16 .78 1.72 2.01
5TMT2 5/16 1/8 1.16 .38 .82 .55 5/8 .87 1.70 1.98
6TMT4 3/8 1/4 1.21 .56 1.00 .55 11/16 .91 1.91 2.21
8TMT6 1/2 3/8 1.38 .56 1.08 .74 7/8 .98 2.06 2.46
8TMT8 1/2 1/2 1.38 .75 1.26 .74 7/8 .98 2.24 2.64
10TMT8 5/8 1/2 1.47 .75 1.38 .74 1 1.06 2.40 2.85
