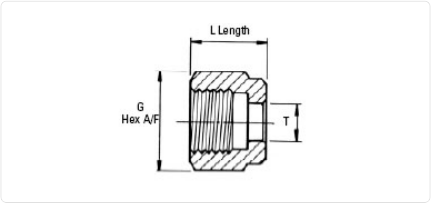

NUTS
|
|||||||||||||
| Part No. | T o/d | G Nut | L | ||||||||||
| 6mN | 6 | 14 | 13 | ||||||||||
| 8mN | 8 | 17 | 13.5 | ||||||||||
| 10mN | 10 | 19 | 15 | ||||||||||
| 12mN | 12 | 22 | 17.5 | ||||||||||
| 16mN | 16 | 27 | 17.5 | ||||||||||
| 18mN | 18 | 30 | 18 | ||||||||||
| 25mN | 25 | 41 | 21 | ||||||||||
|
|||||||||||||
| Part No. | T o/d | G Nut | L | ||||||||||
| 2N | 1/8 | 7/16 | .47 | ||||||||||
| 3N | 3/16 | 1/2 | .47 | ||||||||||
| 4N | 1/4 | 9/16 | .51 | ||||||||||
| 5N | 5/16 | 5/8 | .53 | ||||||||||
| 6N | 3/8 | 11/16 | .57 | ||||||||||
| 8N | 1/2 | 7/8 | .69 | ||||||||||
| 10N | 5/8 | 1 | .69 | ||||||||||
| 12N | 3/4 | 1-1/8 | .69 | ||||||||||
| 16N | 1 | 1-1/2 | .82 | ||||||||||
